Hardway Performance · HPTuners

5.9 Cummins
Custom Tuning

2003–2007 · Three Power Levels · Built on HPTuners

Explore

2003–2005 5.9 Cummins Custom Tuning | HPTuners | TOW, STREET & LEMONS | Mild to Wild

Hardway Performance SKU:
2003–2005 5.9 Cummins Custom Tuning, HPTuners, TOW, STREET & LEMONS, Mild to Wild — Hardway Performance

2003–2005 5.9 Cummins Custom Tuning | HPTuners | TOW, STREET & LEMONS | Mild to Wild

Hardway Performance SKU:
/
Tuning Order Details * required
2006–2007 HPTuners Tuning Temporarily Unavailable We have temporarily paused HPTuners tuning for 2006–2007 5.9 Cummins while some things get worked out. In the meantime, these model years are fully supported via EFILive. View EFILive tuning option →
Flow sheets must be sent via email separately — calibrations@hardwayperformance.com

Time for an Upgrade?

Optional hardware for 2003–2007 5.9 Cummins builds — add it to your order without leaving this page. Injectors & turbo are labeled Early (2003–2004) or Late (2004.5–2007) so you grab the right fit. Nothing here is required.

Ordering any of the parts below? Please make sure your tuning order above reflects the new parts, not your current setup. This ensures the tuner writing your files can accurately account for the hardware you’re actually running.

Sensors

Hardway 10 Bar MAP Sensor by RIFE | 5.9 & 6.7 Cummins | High Boost Billet | Integrated IAT
Hardway 10 Bar MAP Sensor by RIFE | 5.9 & 6.7 Cummins | High Boost Billet | Integrated IAT

5.9 Cummins · 2003–2007

2003-2007 5.9 CUMMINS 10 BAR MAP SENSOR

$379.00
S&S Rail Pressure Sensor
S&S Rail Pressure Sensor

Fits all common-rail 5.9/6.7 Cummins

$175.50

Injectors — Early (2003–2004)

S&S Diesel 2003–2004 Early 5.9 Cummins Injectors | Singles & Sets | Stock to 500% Over | SAC Nozzle
S&S Diesel 2003–2004 Early 5.9 Cummins Injectors | Singles & Sets | Stock to 500% Over | SAC Nozzle

5.9 Cummins · Early CR (2003–2004)

$2,332.80
2003–2004 Early 5.9 Cummins Injector Set | Dynomite Diesel | 15% to 400% Over
2003–2004 Early 5.9 Cummins Injector Set | Dynomite Diesel | 15% to 400% Over

5.9 Cummins · Early CR (2003–2004)

$3,420.00

Injectors — Late (2004.5–2007)

S&S Diesel 2004.5–2007 Late 5.9 Cummins Injectors | Singles & Sets | Stock to 500% Over | EDM Honed SAC Nozzle
S&S Diesel 2004.5–2007 Late 5.9 Cummins Injectors | Singles & Sets | Stock to 500% Over | EDM Honed SAC Nozzle

5.9 Cummins · Late CR (2004.5–2007)

$2,512.80
2004.5–2007 Late 5.9 Cummins Injector Set | Dynomite Diesel | 15% to 400% Over
2004.5–2007 Late 5.9 Cummins Injector Set | Dynomite Diesel | 15% to 400% Over

5.9 Cummins · Late CR (2004.5–2007)

$3,420.00

Turbo

Fleece Performance Cheetah Turbocharger | 2003–2007 5.9 Cummins CR | Drop-In | 650 RWHP Rated
Fleece Performance Cheetah Turbocharger | 2003–2007 5.9 Cummins CR | Drop-In | 650 RWHP Rated

5.9 Cummins · 2003–2007

$1,993.95 $1,899.00
Shipping calculated at checkout.

2003–2007 · 5.9 Cummins · HPTuners

Mild to Wild.
Your 5.9. Your Way.

HPTuners is the leading tuning platform for the 2003–2007 Dodge Ram 5.9 Cummins, and we've built three purpose-built power levels to match every build. Whether you're pulling a trailer or chasing 500 RWHP, every file is dialed in around your specific fuel system, injector size, and turbo setup — not a one-size-fits-all baseline.

3 Power Levels 2003–2007 CM849 (2006–2007) HPTuners No Shift On The Fly

Three Custom Power Levels Included

Every Truck Gets All Three

Each level is calibrated to your specific build — stock to full-send. Three files, one purchase.

01

TOW

Your clean, crispy everyday tune. Stock-ish fuel delivery, maximum drivability, and the confidence to hook up a trailer. Injection timing advanced, road speed governor removed, post injection eliminated. Roughly 30–50 HP over a stock baseline.

+30–50 HP
+70–110 TQ
02

STREET

The perfect blend. More aggressive than Tow but not at the limit — this is the tune we'd daily the truck on with no trailer attached. Addictive off-idle response, strong mid-range pull, and a meaningful step up in power without pushing everything to the edge.

+100 HP
+200 TQ
03

LEMONS

Named after lemonade — made the same way, by squeezing out every last drop. Maximum fuel delivery while barely maintaining rail pressure. 500–525 RWHP on a stock build. Your engine can take it. Your stock transmission and clutches? That's a death sentence.

500–525 RWHP
+160–180 HP over stock
+320–360 TQ over stock

All three levels include: increased injection timing advance · increased rail pressure command · increased engine speed limiter · removed post injection event · removed road speed governor

No Shift On The Fly — You Flash to Switch

Unlike our 6.7 platform tunes, Shift On The Fly (SOTF) is not available for HPTuners on the 5.9 Cummins. This means each time you want to swap between TOW, STREET, and LEMONS you'll need to connect your MPVI to a Windows computer running VCM Suite and reflash your ECM. It takes a few minutes per flash — and you will need to do it every time you want a different power level.

This is a normal part of the HPTuners workflow on the 5.9 and once you've done it a couple times it becomes second nature. But if you want the ability to change tunes instantly with a physical button — no laptop, no reflash — the 2006–2007 EFILive option below is worth a look.

2006–2007 Owners

Want to Switch Tunes
Without Reflashing?

If your truck is a 2006 or 2007 Ram with the CM849 ECM, you have access to a better option. Through EFILive, we can set you up with a CSP Switch — a small physical switch that lets you flip between power levels on the fly without reflashing each time.

  • Switch between power levels with a physical dash-mounted button
  • Switch between power levels without opening a laptop or connecting a cable
  • Compatible with all current and previous HPTuners MPVI hardware
  • Same three power levels, better on-the-fly delivery
View EFILive Tuning for 2006–2007
2003–2005
HPTuners Only

No CSP Switch or SOTF available for these years. You'll reflash to switch levels. You're in the right place — order here.

2006–2007
HPTuners or EFILive

CM849 ECM supports EFILive with CSP Switch. Swap between power levels on the fly — no laptop, no reflash.

Shop EFILive →

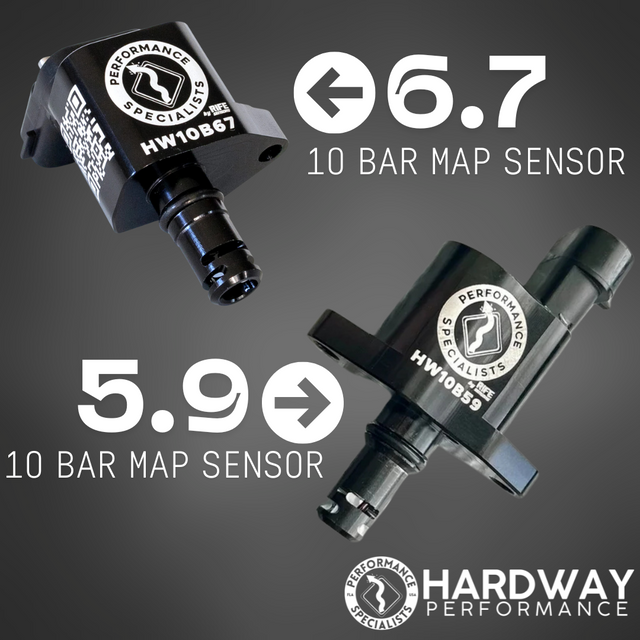

★ Featured TechHardway 10 Bar MAP Sensor by RIFE, 5.9 & 6.7 Cummins, High Boost Billet, Integrated IAT

Tech Sensors

Hardway 10 Bar MAP Sensor by RIFE | 5.9 & 6.7 Cummins | High Boost Billet | Integrated IAT

The stock MAP sensor falls short once you start pushing boost on the 5.9. If you're selecting the 145PSIA / 10BAR calibration option — or planning to — this is the physical sensor your ECM needs to actually read that data. Built for high-boost 5.9 applications, direct plug-in fit, no wiring modifications required.

High Boost Rated Direct Plug-In Fit
$379.00
Shop Now

What You Need

Hardware Checklist

HPTuners MPVI Interface MPVI2, MPVI2+, MPVI3, RTD Gen 3, RTD+, or RTD. Note: the MPVI4 does not yet support the 2003–2007 5.9 Cummins — a Windows laptop running VCM Suite is required regardless of which interface you use.
2 Universal Credits Required to license your ECM for tuning. If your ECM was previously licensed, confirm via VCM Scanner before purchasing additional credits.
Windows PC or Laptop HPTuners VCM Suite runs on Windows only. Required to read your ECM, send us the base file, and flash your completed tunes each time you switch levels.
HPTuners VCM Suite Free download from hptuners.com. Ensure you're running the latest version before reading your ECM or flashing any tune files we send back.

Re-Tune Fee Waived on Parts Purchases

If we've tuned your truck and you're upgrading parts that require a re-tune down the road, we will waive the $200 re-tune fee if you purchase those parts from us. Plan ahead and save.

Questions

Frequently Asked

Does this come with Shift On The Fly?

No. SOTF is not available for HPTuners on the 2003–2007 5.9 Cummins platform. To switch between TOW, STREET, and LEMONS you connect your MPVI to VCM Suite and reflash. It's quick once you've done it, but you will need to reflash each time. If you have a 2006–2007 truck and want tune-switching without reflashing, see our EFILive listing with CSP Switch support.

I have a 2006 or 2007 — should I order this or the EFILive version?

Both work. This HPTuners listing is solid if you already own an MPVI or prefer the HPTuners platform. However, if you want the convenience of switching tunes with a physical CSP Switch — no laptop, no reflash — our EFILive listing is the better choice for your CM849-equipped truck. Your build specs transfer either way.

How many credits does this use?

Licensing your 5.9 ECM requires 2 universal credits. If you've already licensed it through a previous HPTuners session, check your VCM Scanner to confirm current license status before purchasing additional credits — you may not need them.

Does my injector or turbo setup affect which tunes I receive?

Yes — significantly. Your injector size, pump configuration, turbo setup, and rail pressure sensor all directly influence how each power level is calibrated. That's exactly why we collect this information in the order form. If you have a compound turbo or oversized injectors, give us everything in the Build Details field — the more we know, the better the tune.

I selected a dual pump setup — what does the twin pump field mean?

When you select a Dual pump option, a second field appears asking whether you use a twin pump controller (ATS, BD, Industrial Injection, etc.) or a passive splitter harness only. This matters for calibration — a controller actively manages fuel demand differently than a passive split, and your tune is built accordingly. Don't skip this field.

How hard is it to flash the ECM between power levels?

Straightforward. Connect your MPVI, open VCM Suite on your Windows machine, load the tune file, and flash. Start to finish it's a few minutes. You'll likely do it once to get comfortable and then it becomes routine. If at any point you need help, email us — we'll walk you through it.
