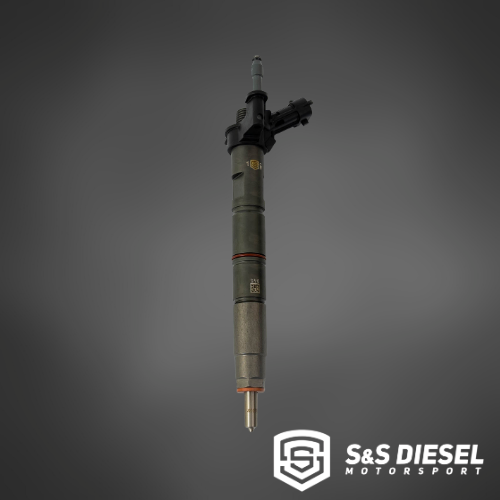

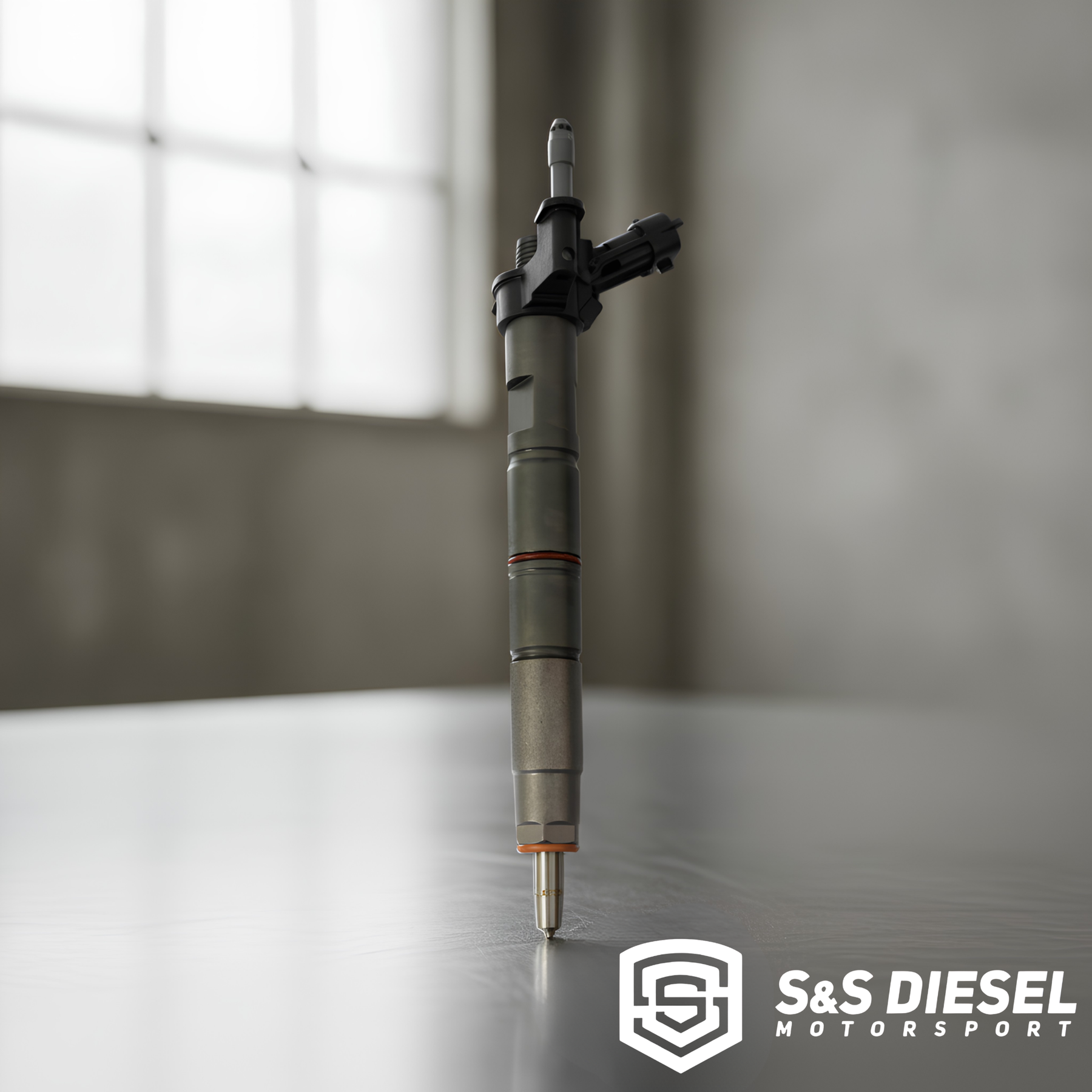

S&S Diesel Motorsport injectors for the 2011–2016 LML Duramax, available as individual injectors or complete sets of 8. The LML platform uses piezoelectric injectors — a fundamentally different technology from the solenoid injectors used in earlier Duramax generations — and S&S has engineered a full lineup specifically for this platform from TorqueMaster stock replacement through 300% over stock.

What separates S&S LML injectors from everything else on the market is the level of precision engineering behind every set. S&S uses a proprietary nozzle honing process for clean and consistent holes, with nozzles flow-matched to 1% variance per set using OE standards — Viscor SAE-J967 fluid, 40°C, 100 bar. Complete injectors are flow-matched to 3% variance per set at four different pressure and energizing points per injector, with injection profiles (rate shapes) aligned across the set. Injector build spec is custom-matched to the nozzle flow rate for each size — and critically for the LML platform, every injector includes internal piezo modifications (piezo mod) to properly match the injector body to the nozzle flow rate. This internal modification is what makes a properly calibrated high-output LML injector possible and is not offered by most competing injector suppliers.

Custom sizes beyond 300% over are available on inquiry — contact us at info@hardwayperformance.com for pricing and availability on custom builds.

Note: No reman option is available on the LML platform. All LML injectors are new only. This is inherent to the piezo injector design and is consistent across the industry.

Available flow rates and their intended applications:

TorqueMaster Stock (LML-10SAC / LML-10SAC-SET) — S&S stock replacement engineered for maximum low-end torque, drivability, and reliability. The right choice for daily drivers and towing applications.
30% Over (LML-30SAC / LML-30SAC-SET) — Mild performance upgrade for lightly modified trucks.
45% Over (LML-45SAC / LML-45SAC-SET) — Strong mid-level upgrade for trucks with turbo and airflow improvements.
60% Over (LML-60SAC / LML-60SAC-SET) — Designed for aggressive street setups requiring upgraded fuel system support.
80% Over (LML-80SAC / LML-80SAC-SET) — High-performance territory requiring significant supporting modifications.
100% Over (LML-100SAC / LML-100SAC-SET) — Serious performance builds with upgraded CP3 conversion, lift pump, and tuning.
150% Over (LML-150SAC / LML-150SAC-SET) — Competition-level fueling for highly modified engines.
200% Over (LML-200SAC / LML-200SAC-SET) — Extreme fueling for advanced race builds.
250% Over (LML-250SAC / LML-250SAC-SET) — Serious high-output injector for fully built engines.
300% Over (LML-300SAC / LML-300SAC-SET) — Maximum available standard size. Dedicated competition application. Contact us for custom sizes beyond 300%.

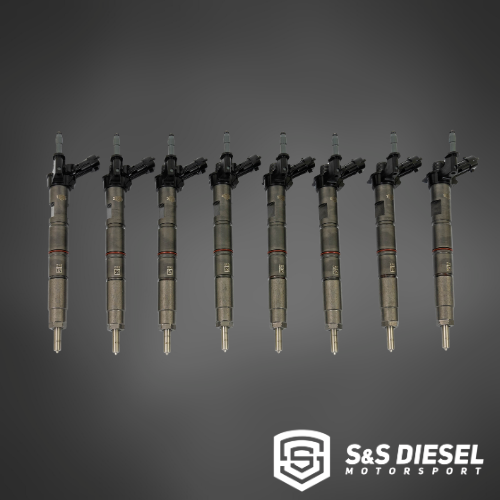

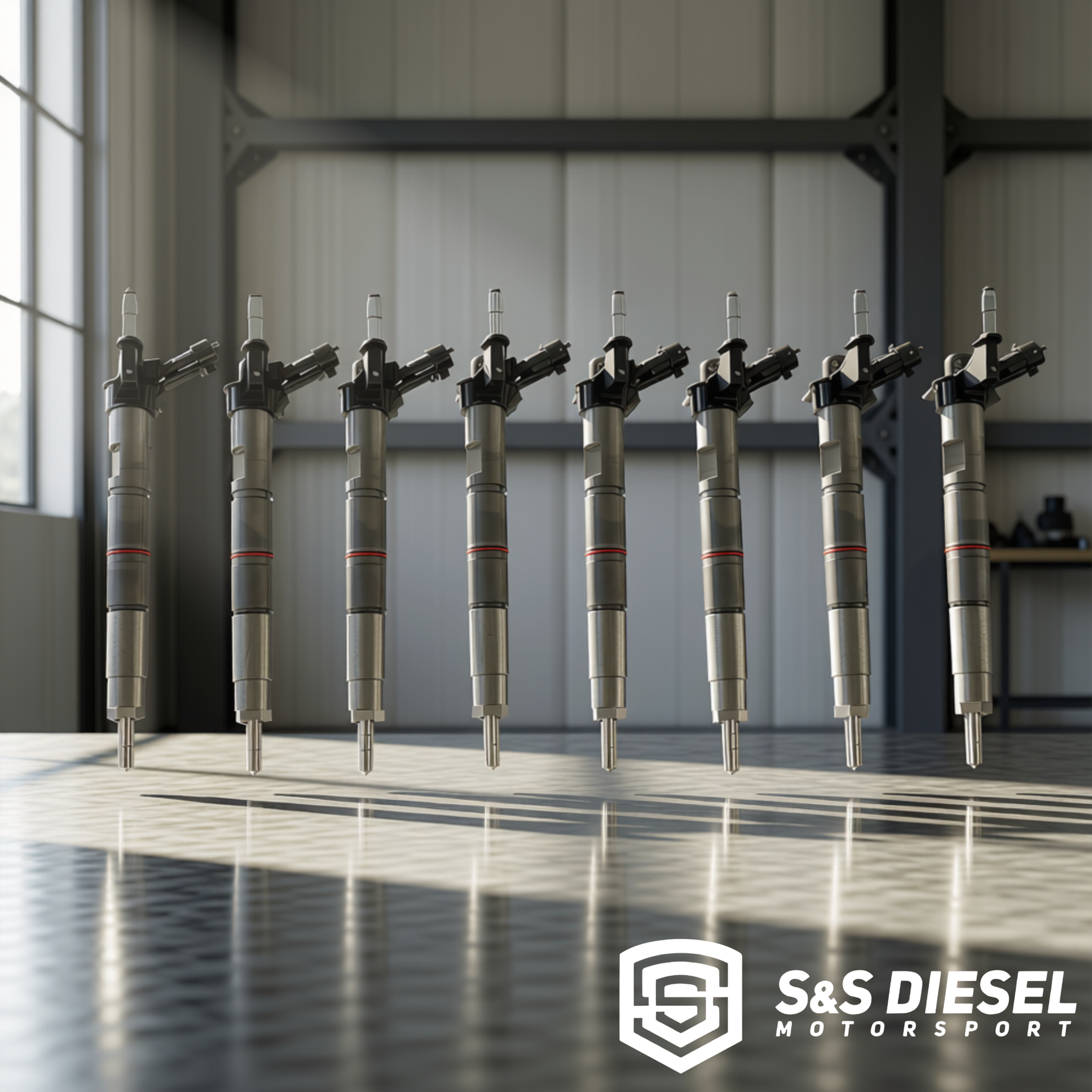

All variants are new only — no reman available on the LML piezo platform. Each size available as a single injector or complete set of 8. Note: the LML Duramax uses 8 injectors — order a quantity of 8 singles or select the SET variant for a complete engine set.

Larger flow rates require a CP3 conversion (the LML uses a CP4.2 from the factory — a CP3 conversion is strongly recommended for any performance build), lift pump upgrades, turbocharger or compound setup upgrades, and custom tuning calibrated specifically for your injector size. Oversizing injectors without proper supporting components results in poor drivability and excessive smoke. When properly matched these injectors deliver clean, controlled power.

Not sure which size is right for your setup? Contact us at info@hardwayperformance.com with your year, overall use, turbo combination, and HP goals and we will make a recommendation.

Core return required. A $150 charge applies if no core is returned. Send cores directly to S&S Diesel Motorsport, not to Hardway.

S&S Diesel Motorsport LLC,
Attn: Cores/Hardway,
1471 W Tipton St,
Seymour, IN 47274.
