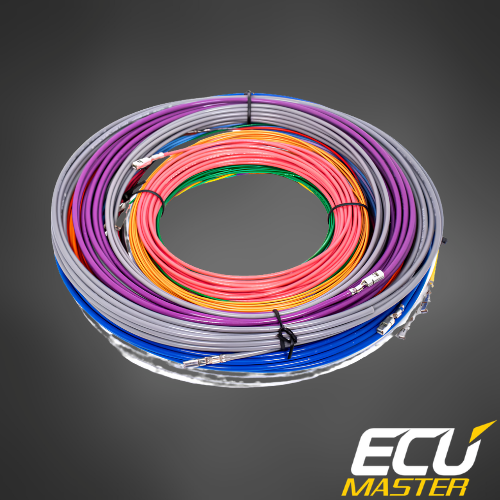

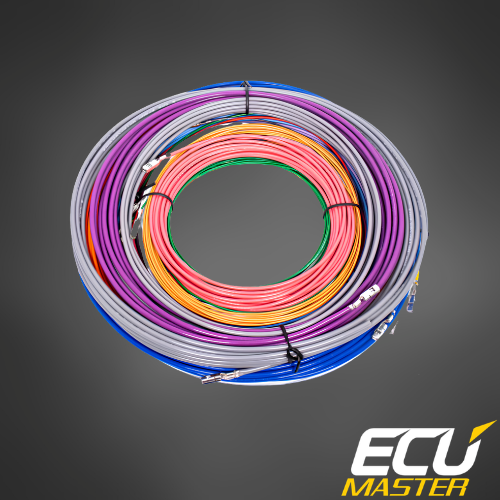

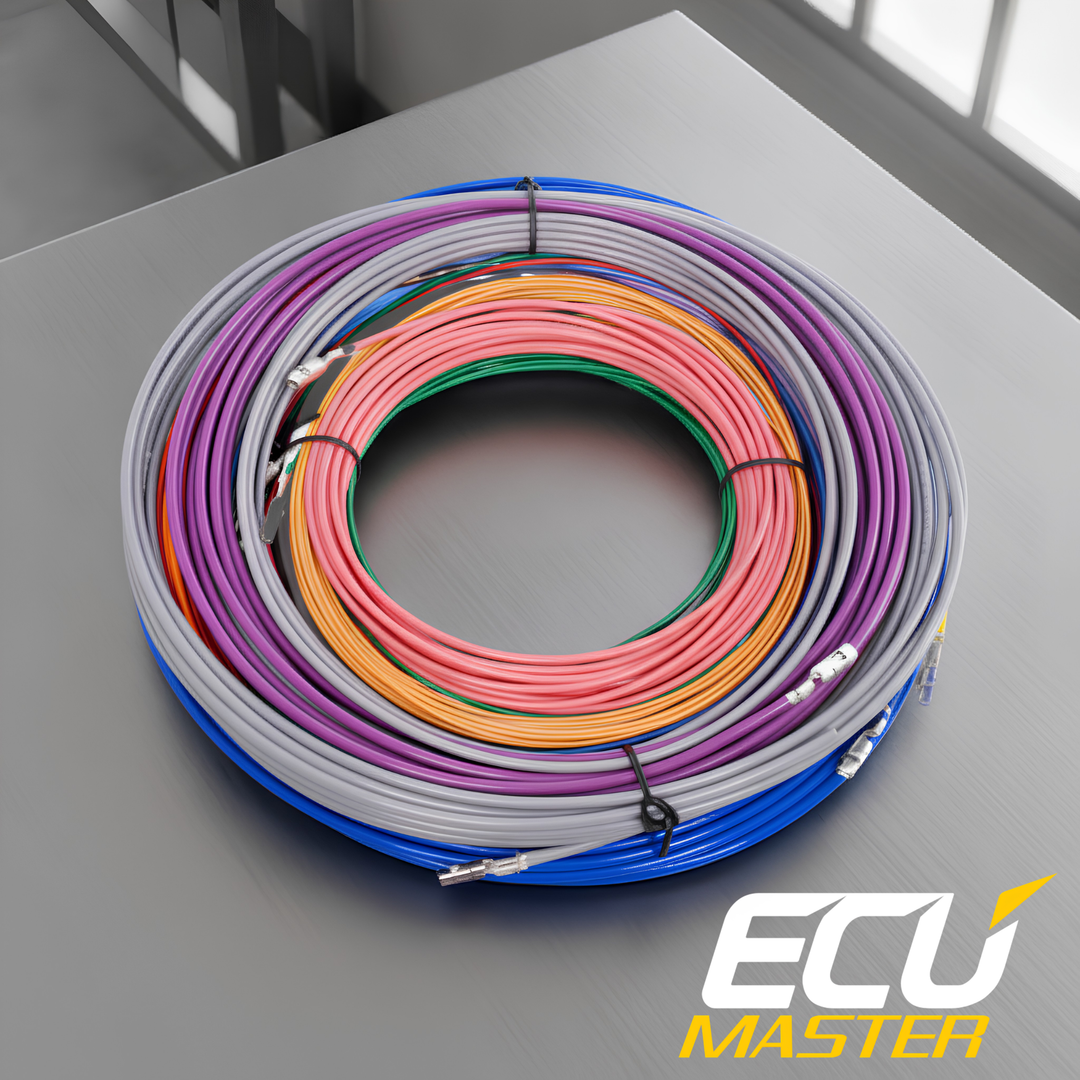

The ECUMaster Flying Lead Harness — Tefzel Version is the premium wiring foundation for your PMU-16, PMU-16 DL, or PMU-24 DL build. Every wire is pre-crimped to PMU terminals using Mil-Spec M22759/32 Tefzel wire — the aerospace and motorsport standard for heat resistance, chemical resistance, abrasion resistance, and long-term reliability in the most demanding environments. If you are building a serious motorsport electrical system around an ECUMaster PMU, this is the harness to start with.
Tefzel wire (M22759/32) is a fluoropolymer-insulated wire used in aerospace, military, and high-end motorsport applications where standard automotive wire is not adequate. It offers outstanding resistance to heat, fluids, abrasion, and chemicals while maintaining excellent flexibility and electrical characteristics — the same material used in Baldwin's Motorsport tier harnesses.
Note: Due to the ongoing shortage of Tefzel wire the colors in your Flying Lead Harness may differ from this list.
Small Terminal (16 feet)
- M22759/32-22-⅘ Green/Yellow
- M22759/32-22-5 Green
- M22759/32-22-9 White
- M22759/32-22-3 Orange
- M22759/32-22-6 Light Blue
- M22759/32-22-8 Gray
- M22759/32-22-1 Brown
- M22759/32-20-1 Brown
- M22759/32-18-2 Red
Small Terminal High-Current (16 feet)
- M22759/32-16-2 Red
- M22759/32-16-5 Green
- M22759/32-16-6 Blue
- M22759/32-16-8 Gray
- M22759/32-16-7 Purple
Large Terminal High-Current (16 feet)
- M22759/32-14-4 Yellow
- M22759/32-14-3 Orange
- M22759/32-14-2 Red
- M22759/32-12-4 Yellow
- M22759/32-12-9 White
- M22759/32-12-6 Blue
Large Terminal High-Current (12 feet)
- M22759/32-14-8 Gray
- M22759/32-12-7 Purple
- M22759/32-12-5 Green
- M22759/32-12-8 Gray
