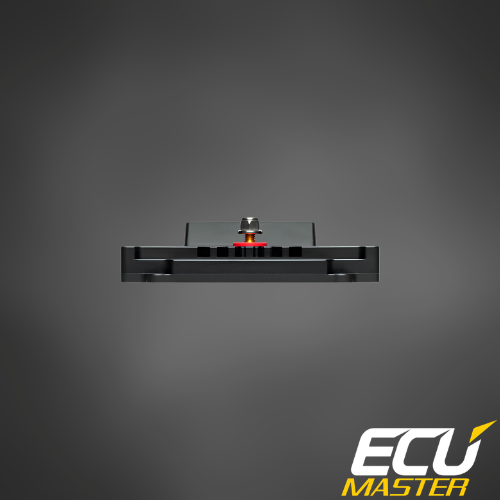

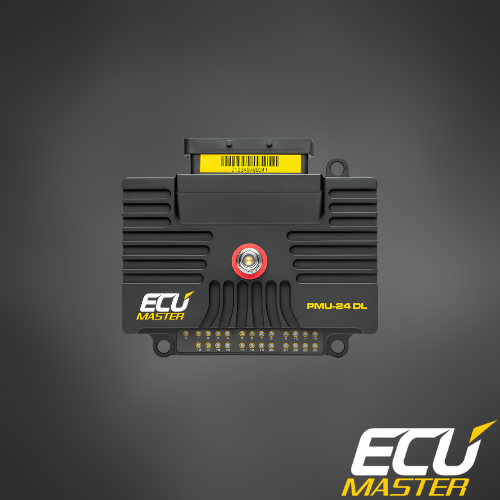

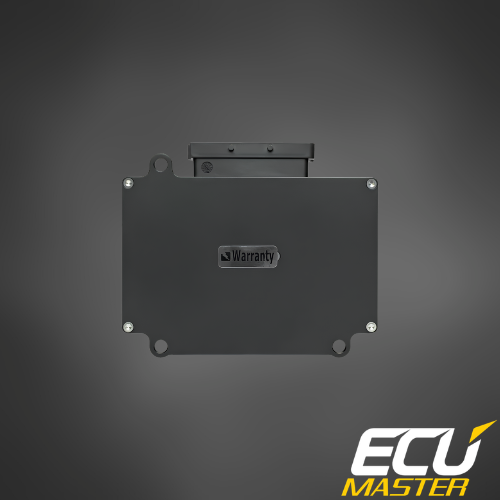

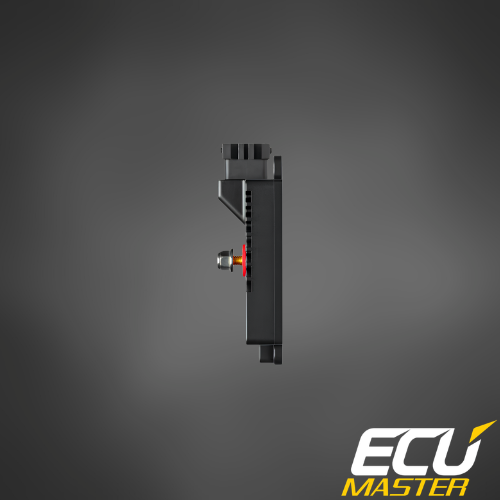

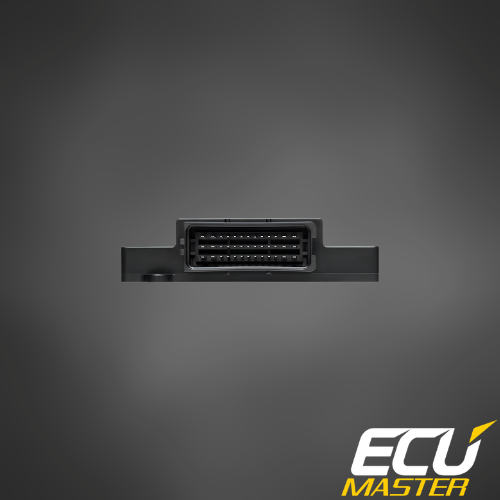

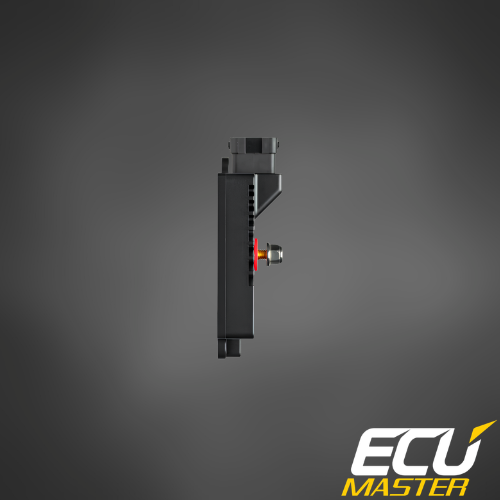

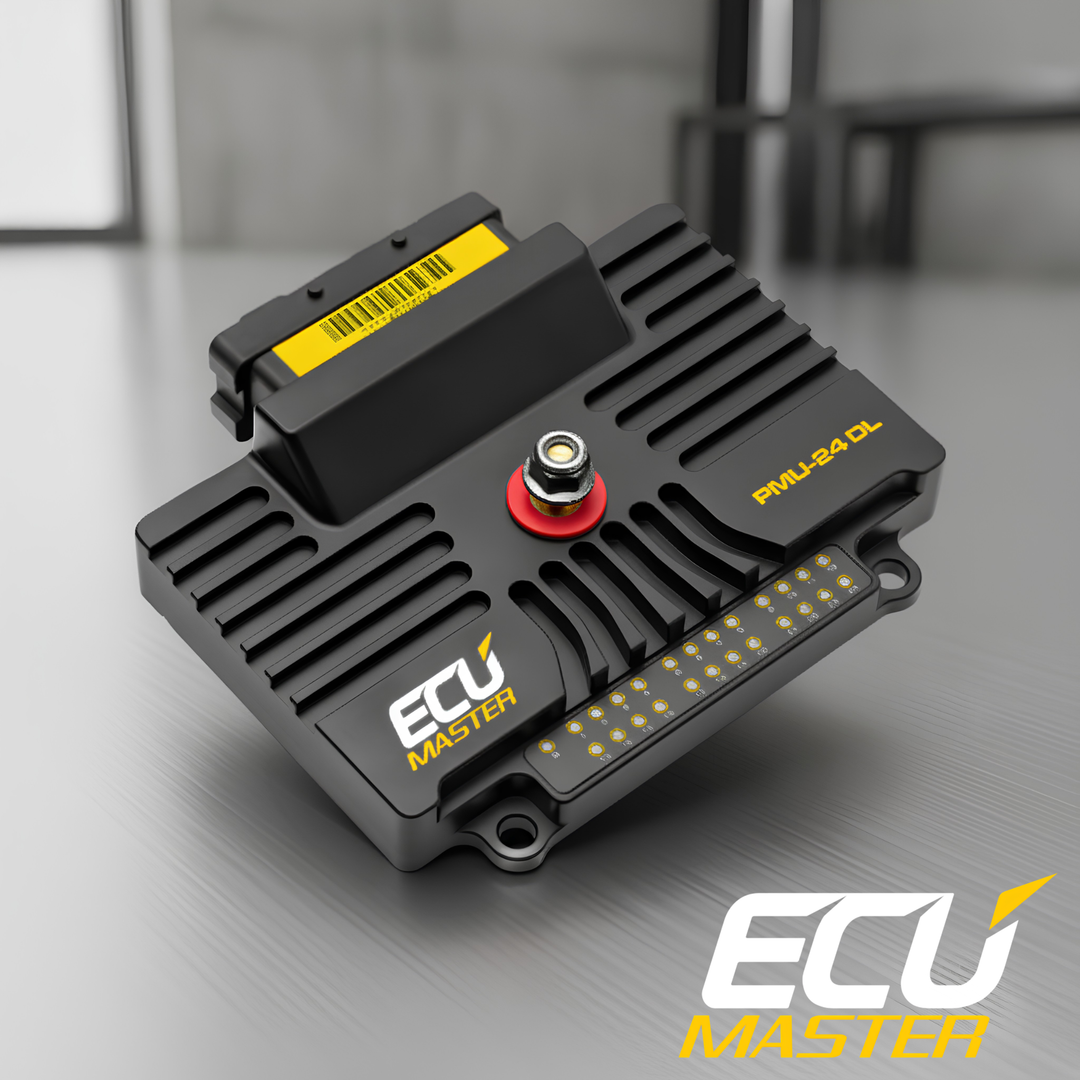

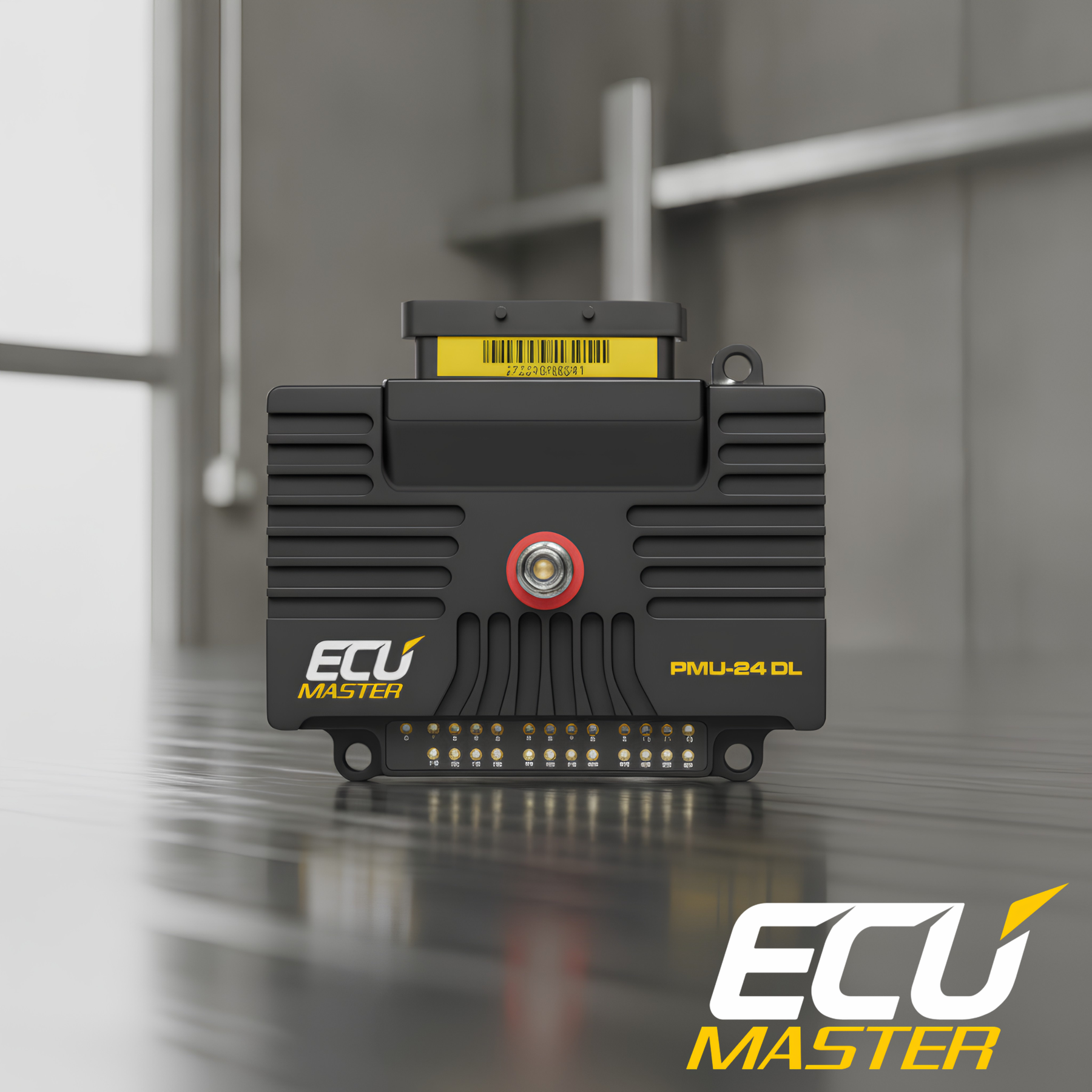

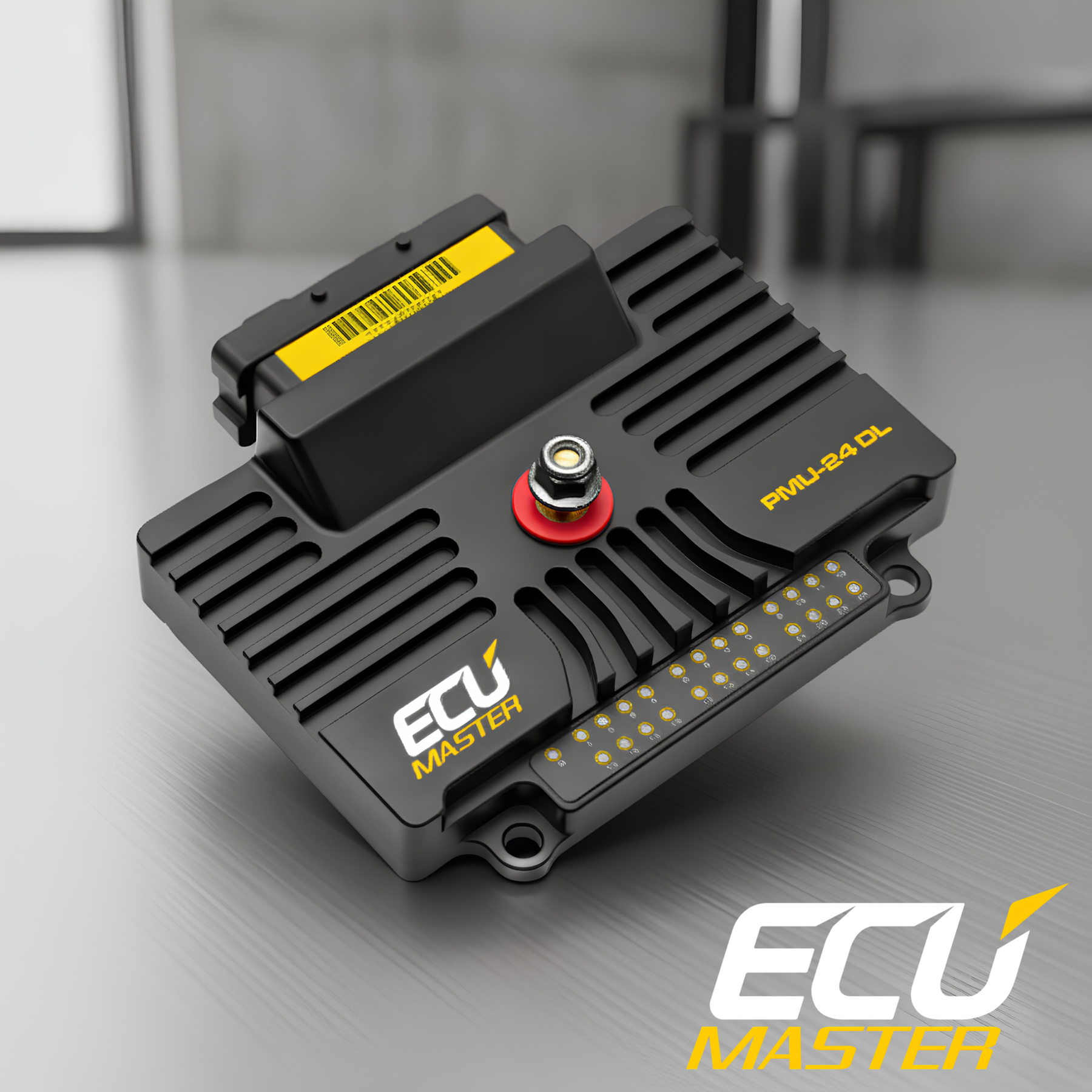

The ECUMaster PMU-24 DL is the expanded and enhanced Power Management Unit — delivering everything the PMU-16 series does, now with 24 high-side outputs and internal data logging memory as standard. Through clever engineering, 8 of the analog inputs can be utilized as additional 7 amp high-side outputs, giving builders unprecedented output flexibility in a single solid-state power distribution unit.

170 amp continuous current capacity across a fully configurable output matrix. All output states, voltage, and current information are transmitted via CAN bus to a connected dash display so the driver has real-time visibility into the electrical system at all times. All internally logged data can be downloaded from the device for post-session analysis.

Output configuration: 10x 25 amp high-side outputs (PWM capable), 6x 15 amp high-side outputs, and 8x 7 amp high-side outputs (from analog inputs) — 24 outputs total with fully customizable logic for each channel.

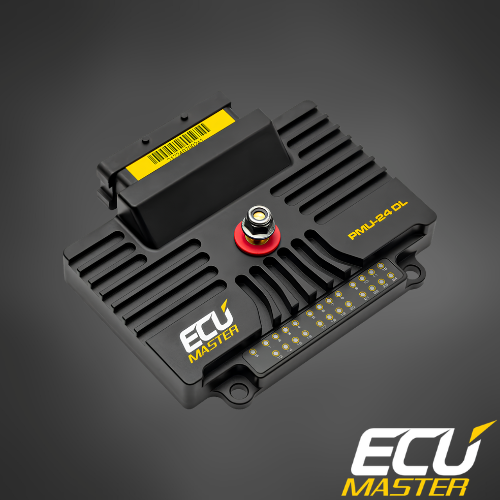

256MB internal data logger memory with up to 500Hz logging frequency and real-time clock for data stamping. Built-in 3D accelerometer and gyroscope. Built-in inertia switch for automatic power cutoff in the event of an accident. 24 tricolor LEDs — one per output — for immediate visual status indication of every channel.

Operating voltage: 6–22V with transient immunity per ISO 7637. Temperature range: AECQ-100 Grade 1, -40°C to +125°C. Two independent CAN 2.0 A/B ports. Up to 16 analog inputs. Internal data processing using logical functions, numbers, timers, and tables. Custom PID controllers supported. Easy CAN bus data import and export. Flexible and intuitive Windows client software.

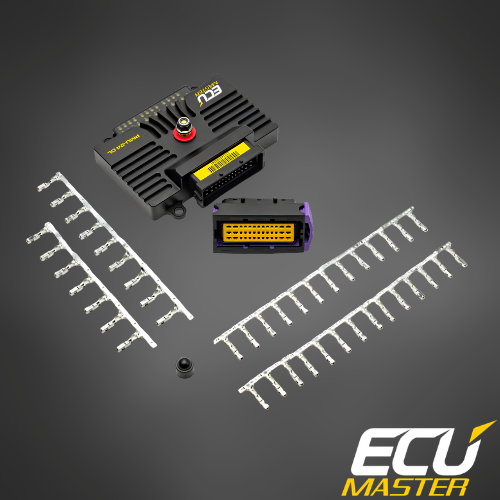

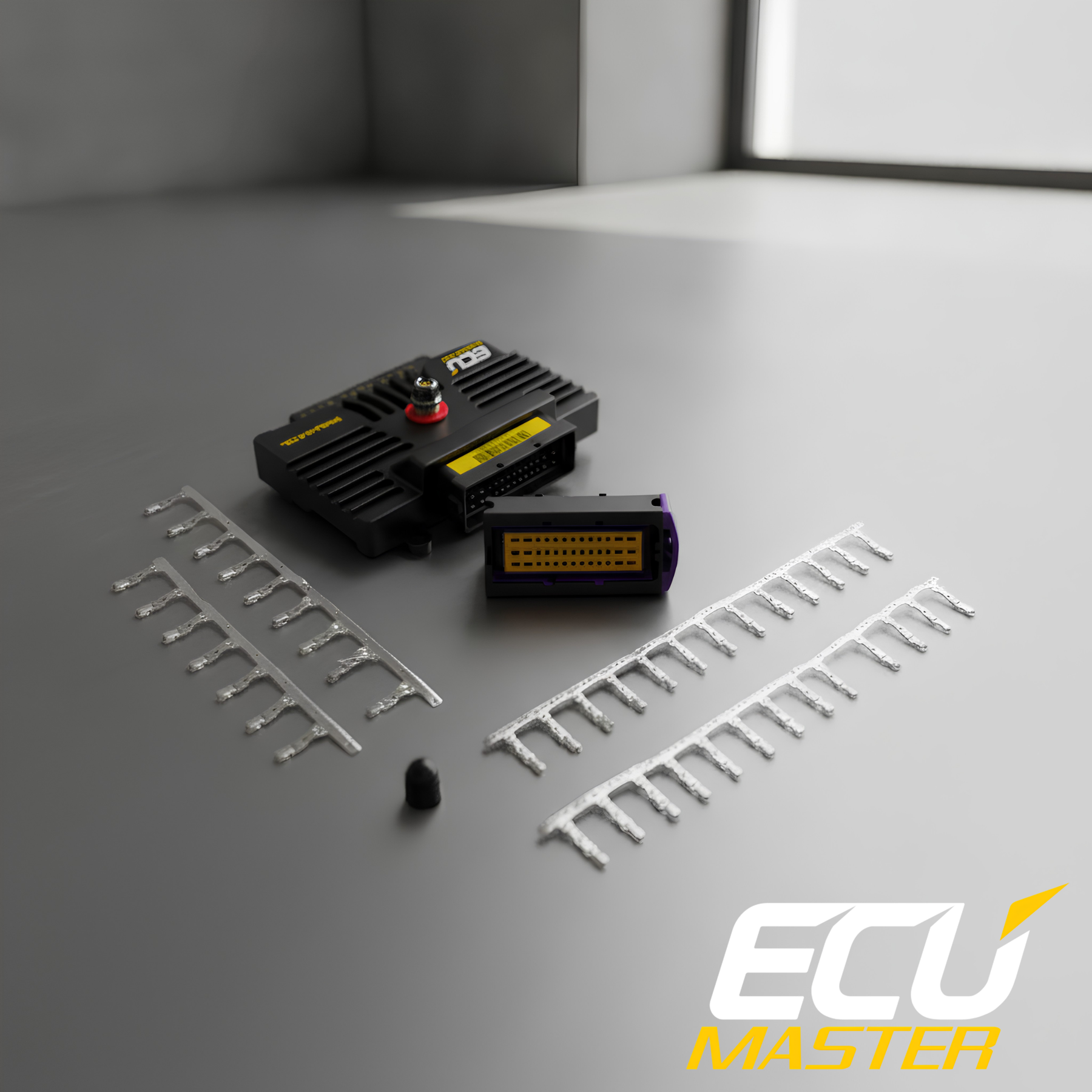

Available in two variants — select at checkout: With USB to CAN (ECUUSBCAN) — Full package including the USB to CAN adapter required for programming. Without USB to CAN — PMU-24 DL only. Choose this if you already own a compatible USB to CAN interface.
