New and Improved GPS to CAN V2
- 25Hz refresh rate (20Hz on V1)
- IMU no longer needs to undergo calibration
- Improved measurement stability
The ECUMaster GPS to CAN V2 is a high-accuracy position tracking module delivering a 25Hz update rate — a 25% improvement over the V1's 20Hz — with simultaneous support for four navigation systems: GPS, GLONASS, Galileo, and BeiDou. The IMU no longer requires calibration, and measurement stability has been significantly improved over the previous generation.
Built-in 3-axis accelerometer and gyroscope deliver real-time data on speed, position, heading, altitude, lateral and longitudinal accelerations, and angular velocities — all transmitted via CAN bus. An external active antenna with magnetic base is included.
Designed to work natively with ECUMaster ADU display and logger units for real-time lap timing, predictive lap timing, and post-session data analysis with full track map visualization. When combined with an ADU the GPS to CAN V2 transforms your dash into a complete data acquisition and lap timing system without requiring an IR beacon.
The GPS to CAN V2 requires programming via CAN interface. Compatible interfaces include the ECUMaster USB to CAN, Kvaser, or Peak PCAN.

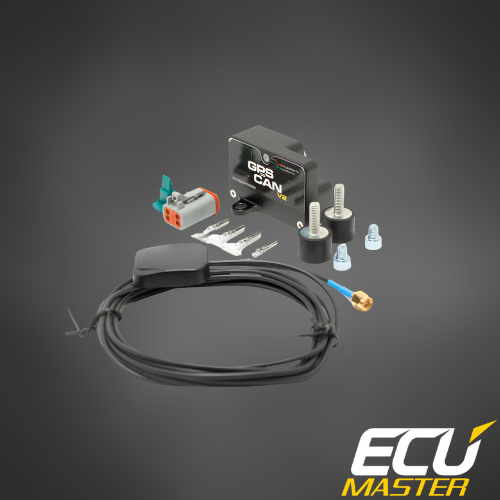

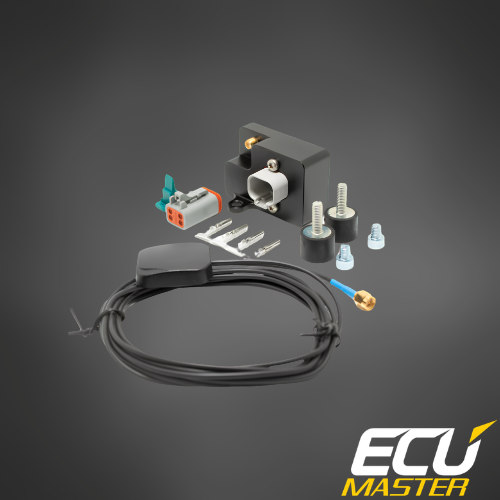

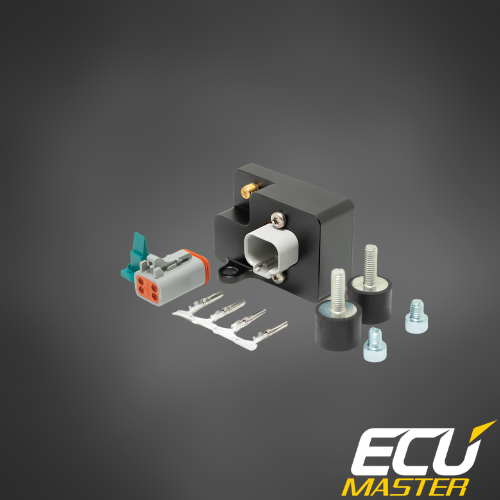

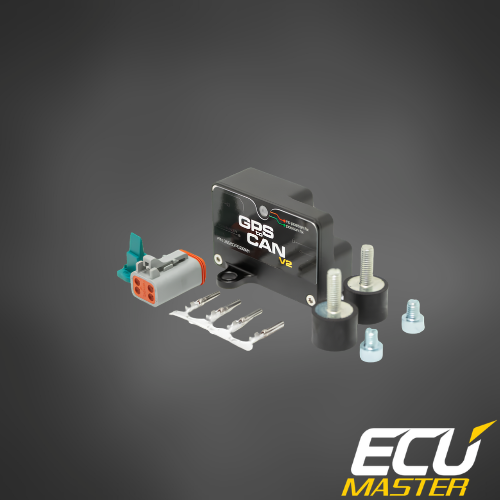

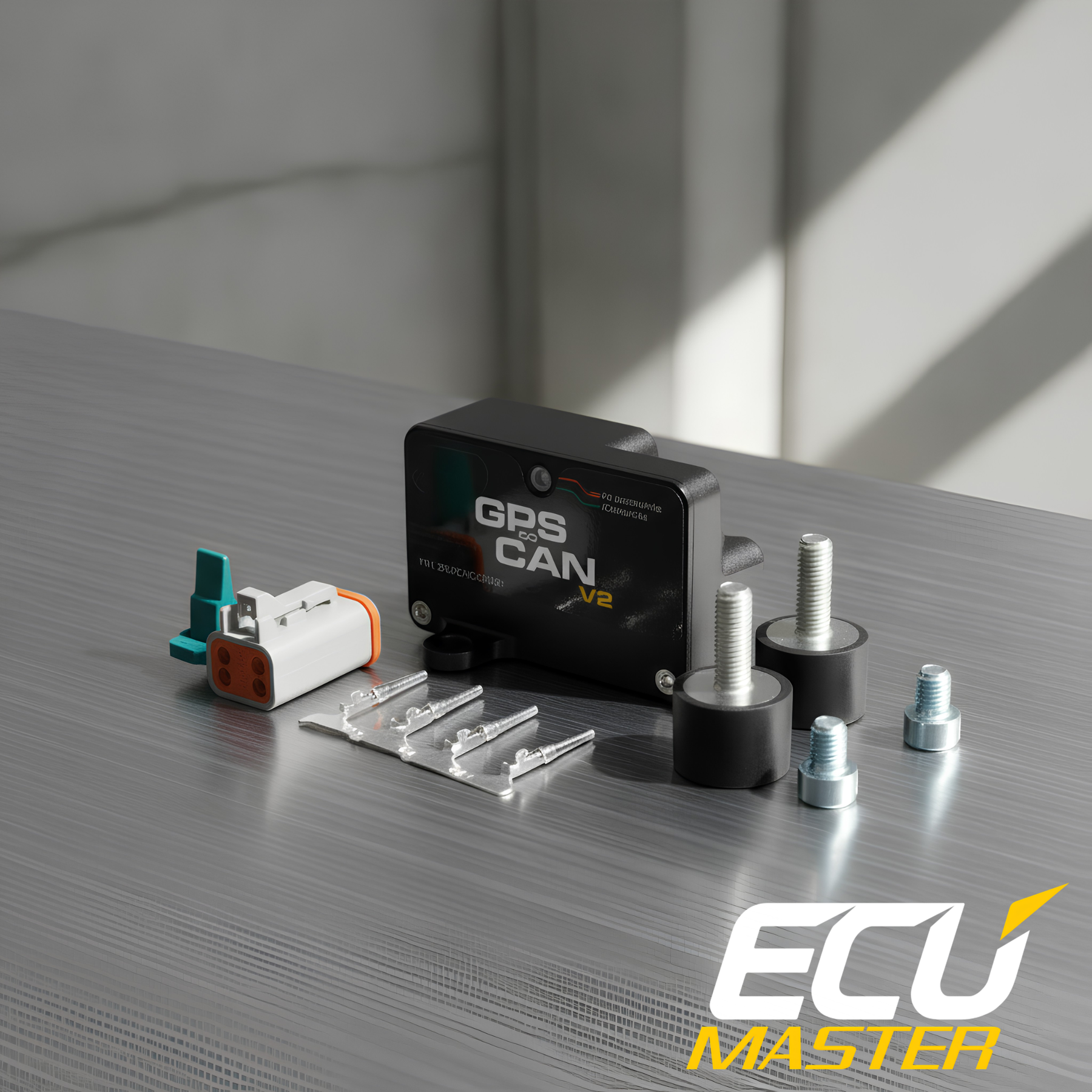

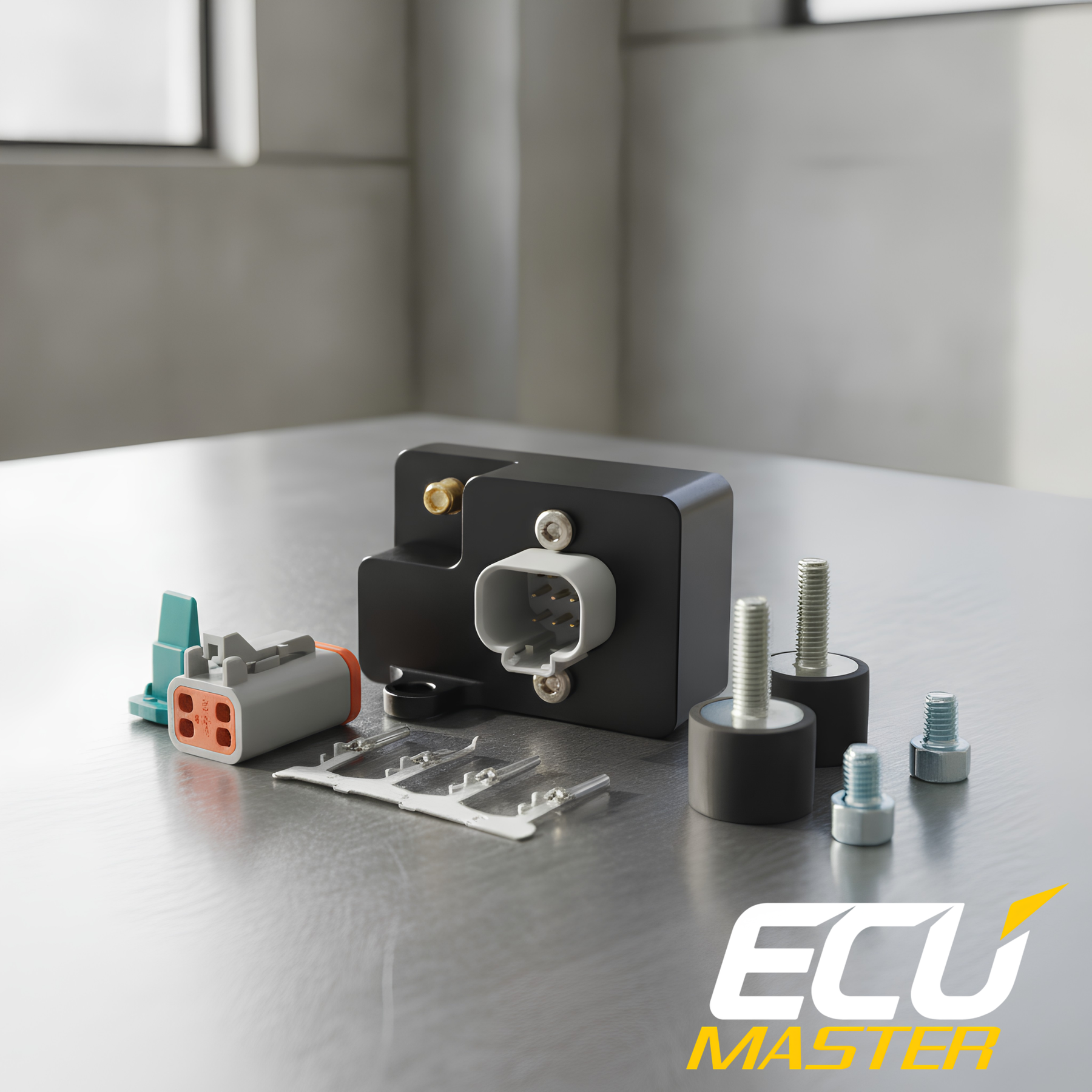

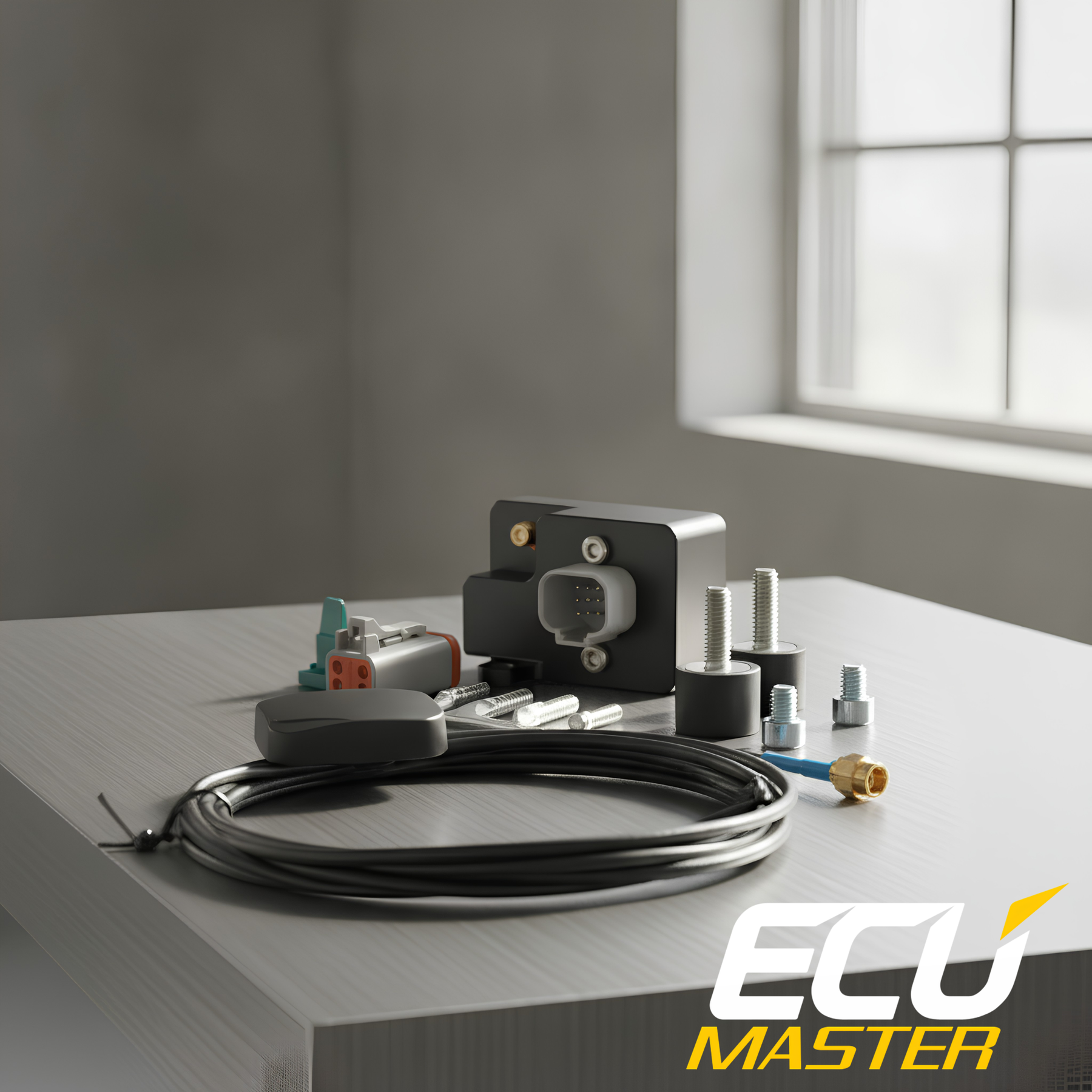

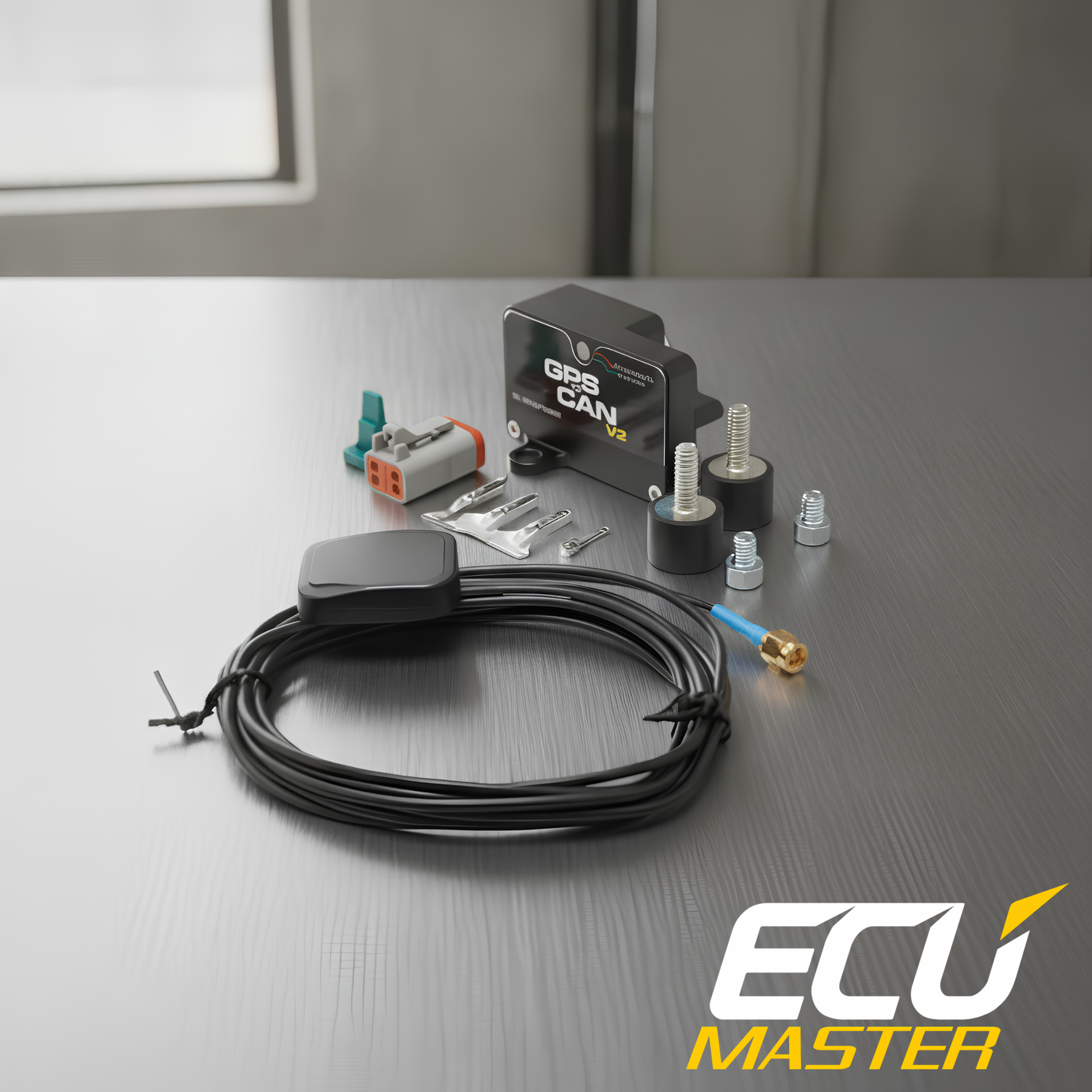

What's in the box:
- GPS to CAN Module
- Vibration isolating mounts
- 4 position Deutsch DT connector with terminals
- GPS Antenna
The GPS to CAN V2 device must be programmed using a CAN interface. The ECUMaster USB to CAN, Kvaser, or Peak PCAN may be used.
For additional information such as wiring instructions, mounting requirements, CAN-bus messaging, and general installation notes please see the user manual linked below.
