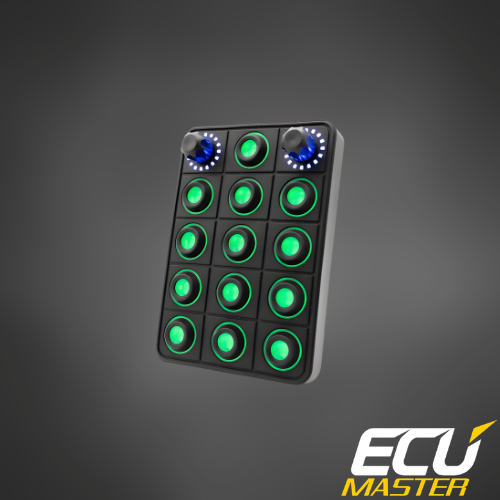

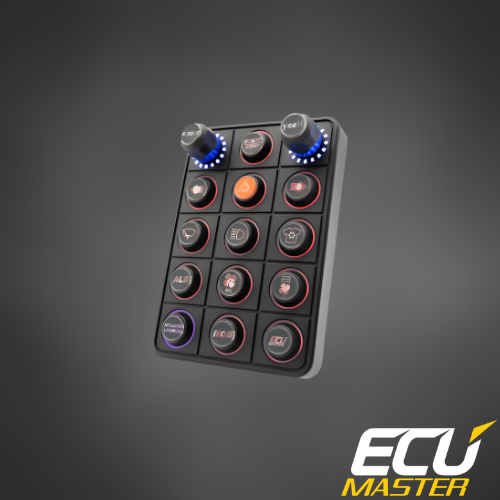

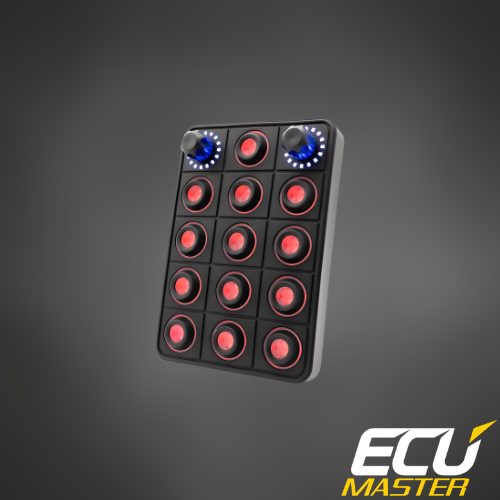

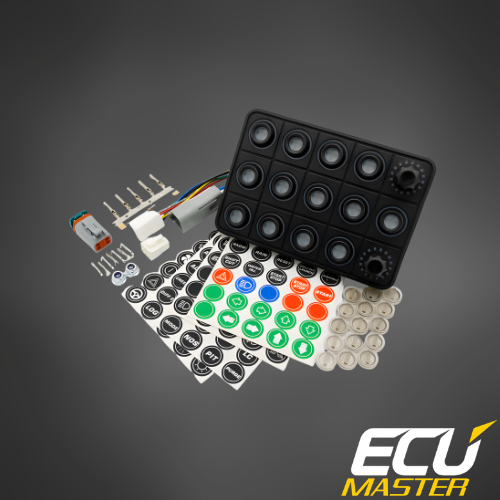

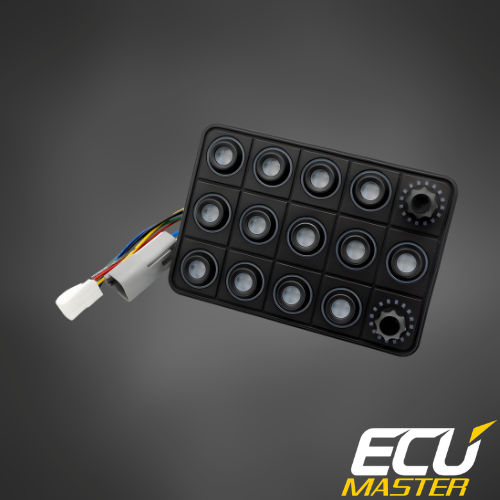

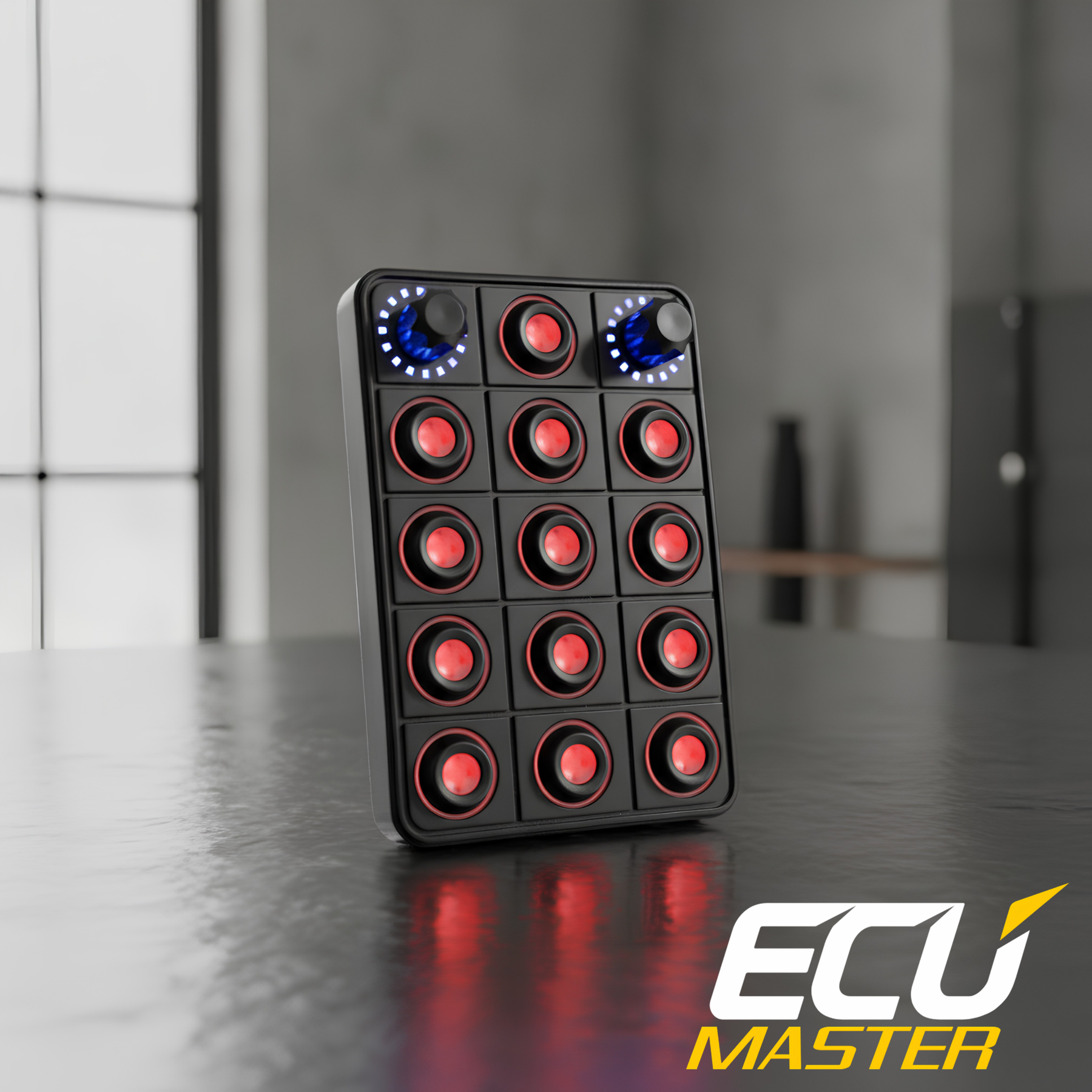

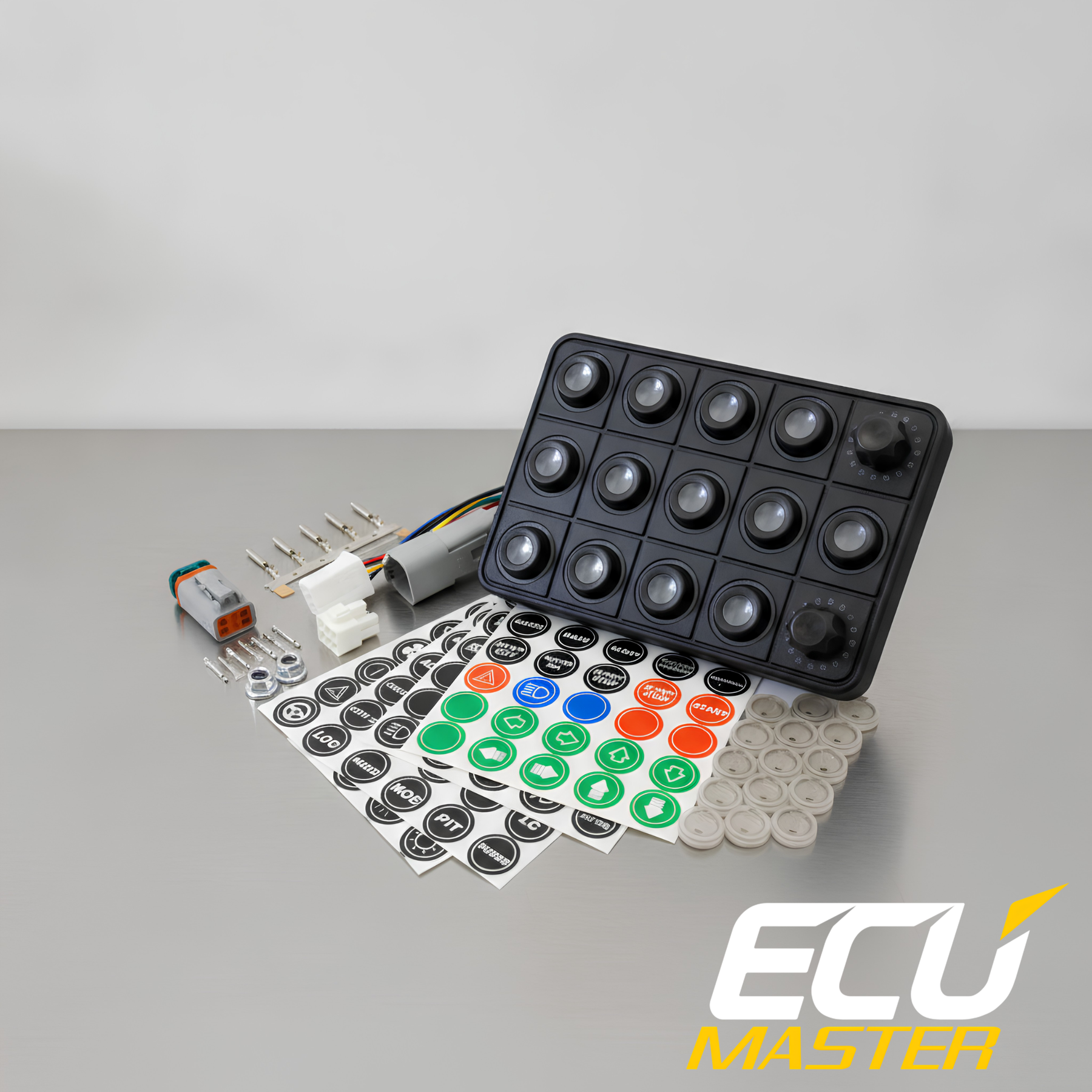

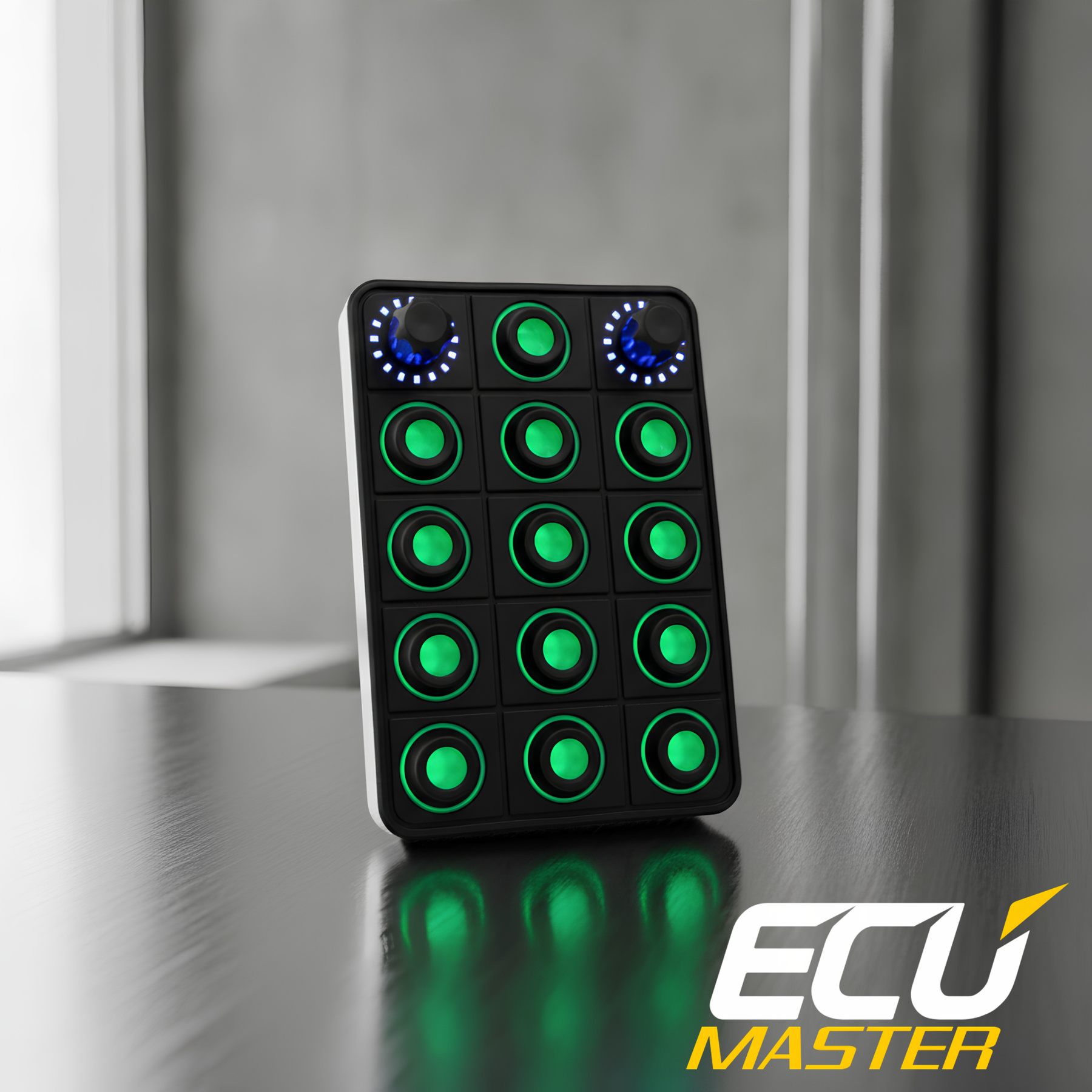

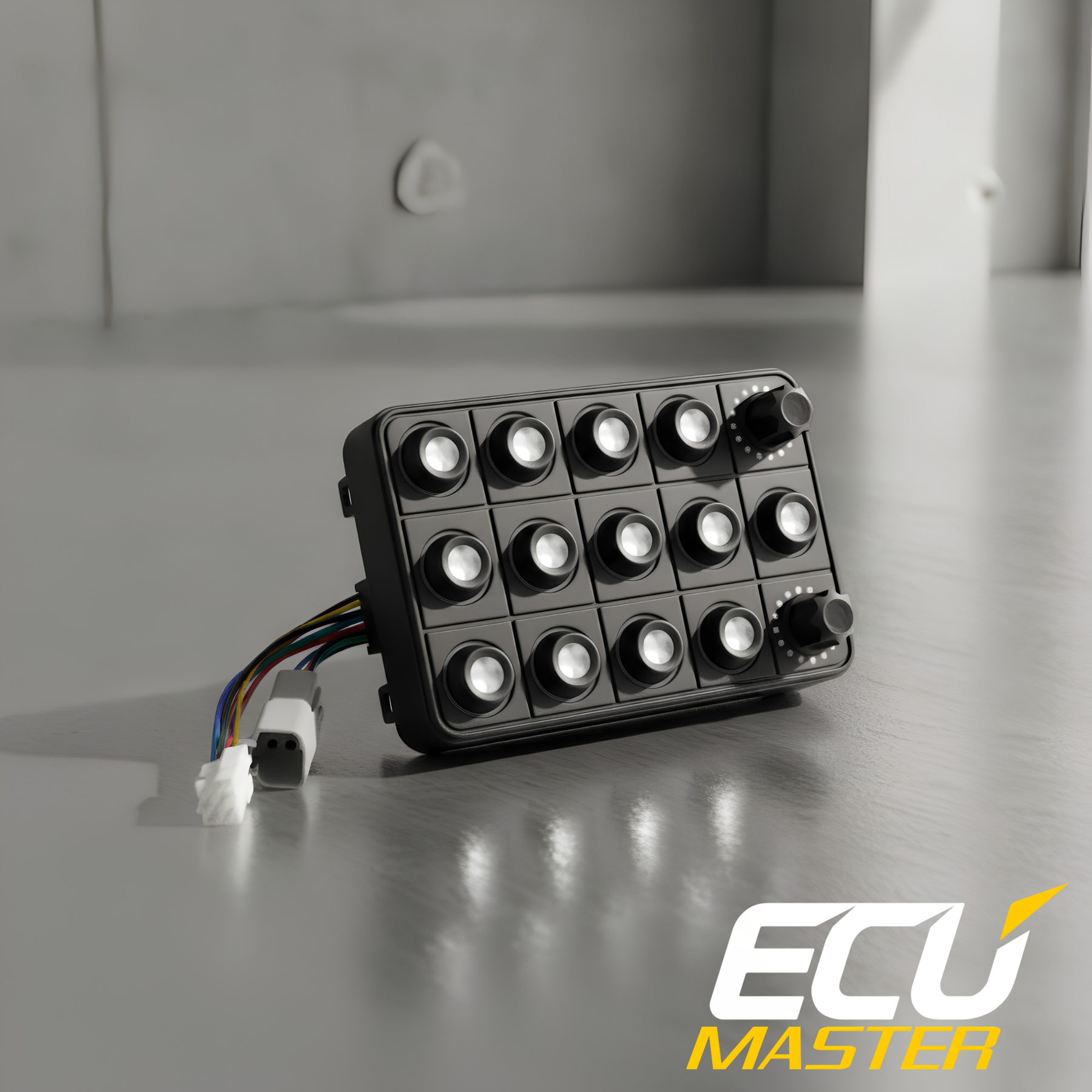

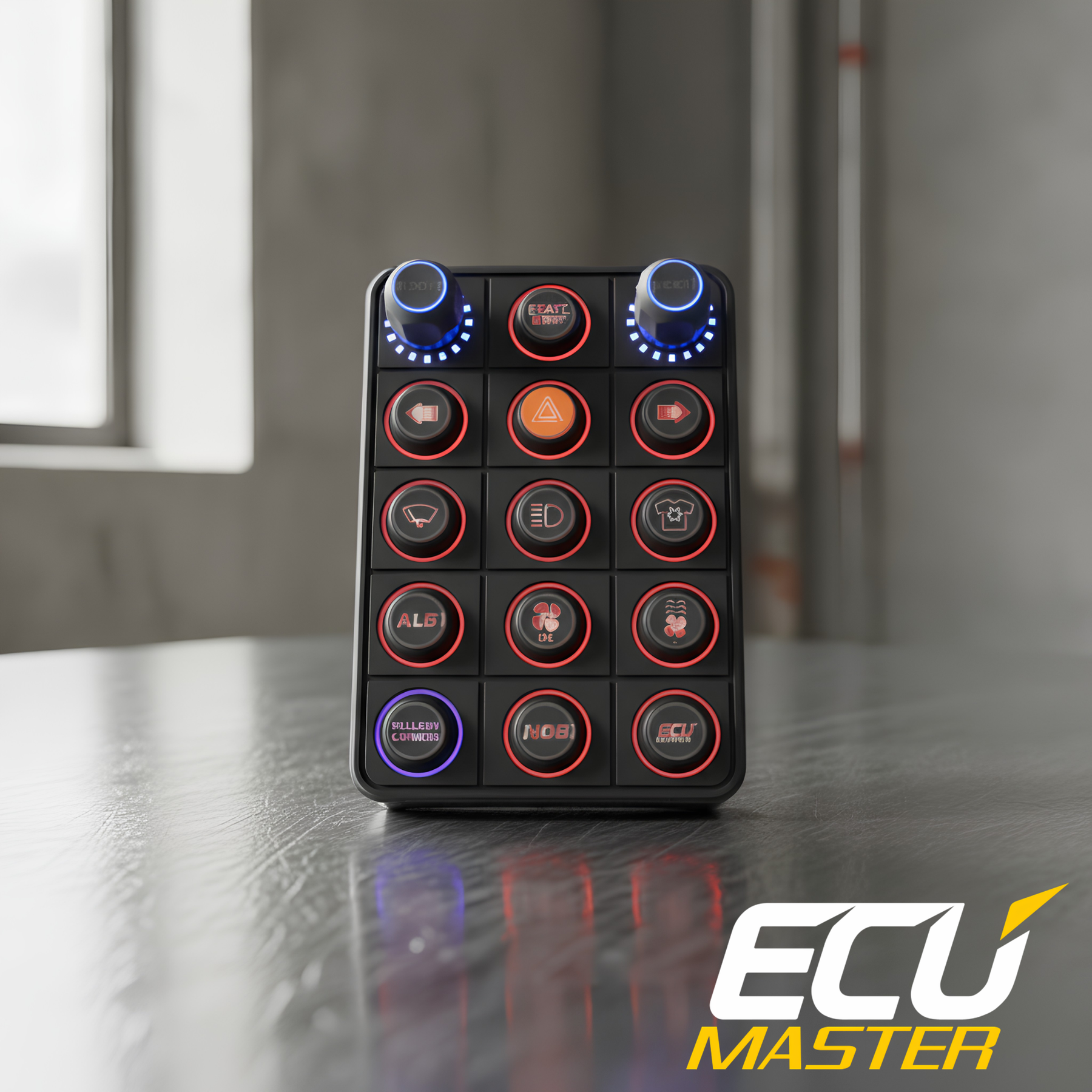

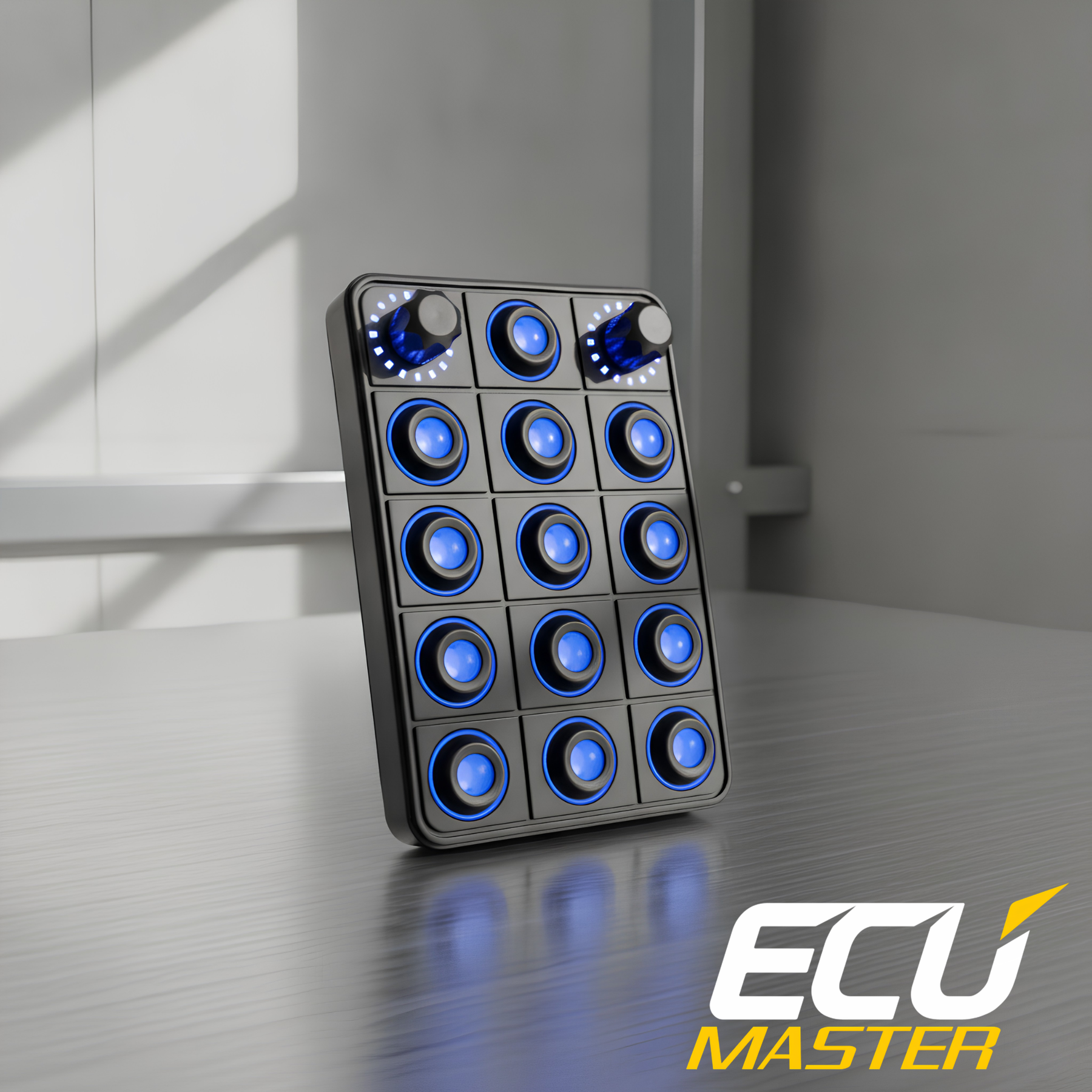

The ECUMaster 15-Position CAN Keyboard with Rotary Switches is a fully programmable CAN-based control panel designed for advanced engine management and power distribution systems.
Featuring 15 configurable push buttons and integrated rotary switches, this keyboard allows you to control multiple vehicle functions through CAN communication — eliminating traditional switch wiring and simplifying complex electrical systems.
Clean install. Full control. Professional integration.
🔥 Key Features
• 15 programmable push-button inputs
• Integrated rotary switches for multi-position control
• CAN bus communication
• Fully configurable via ECUMaster software
• LED backlighting and status indication
• Designed for integration with PMU and ECU systems
• Compact motorsport-ready construction
🎛️ What It Can Control
When paired with compatible systems, this CAN keyboard can operate:
• Ignition and starter functions
• Cooling fans and pumps
• Lighting systems
• Drive modes
• Boost control maps
• Traction control adjustments
• Data logging triggers
• Custom programmable functions
Instead of running direct power through switches, commands are sent digitally over CAN — cleaner, safer, smarter.
🔌 Why CAN-Based Switching Matters
Traditional switch panels require heavy wiring and relay systems.
The CAN Keyboard allows:
• Reduced wiring complexity
• Seamless integration with PMU systems
• Custom logic-based output control
• Configurable LED feedback
• Professional motorsport-level wiring solutions
It pairs perfectly with solid-state power modules like the PMU16.
🛠️ Ideal Applications
• Standalone ECU builds
• PMU-based electrical systems
• Race vehicles
• High-end street builds
• Custom motorsport wiring projects
If you're building a clean electrical system, this is how you control it properly.
⚙️ Installation Notes
Professional installation and configuration are recommended.
This unit is designed to work within a CAN-based power management system. Verify compatibility with your ECU or PMU prior to purchase.
🚀 Why This Matters
Modern performance builds demand clean wiring and intelligent control systems.
The ECUMaster 15-Position CAN Keyboard reduces wiring clutter, improves reliability, and allows fully programmable control over your vehicle’s functions.
Less wiring. More control. Zero compromise.
PINOUT & DIMENSION INFORMATION
CAN KEYBOARD WIRING, INSTALL, PROGRAMMING, & PMU CONFIGURATION
5X3 CAN ANALOG 1-4 DBC FILE
